ZigBee Product Range

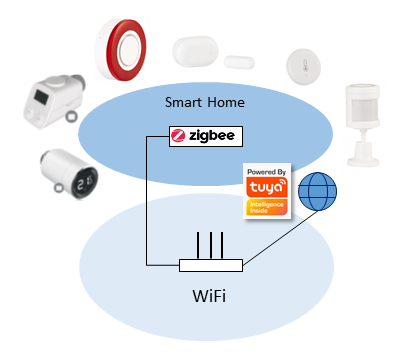

The ZigBee product range makes it is possible to advance the basic WiFi smart home solution for temperature control of underfloor heating into a more complex system. Additional sensors can be added for monitoring temperature and humidity, including the collection of historical data. Window and occupancy sensors provide the possibility to integrate intelligent energy saving scenarios, whereas the same sensors can be used to integrate a security solution, possibly in combination with an alarm siren. Radiator thermostats can be used to integrate mixed underfloor / radiator systems into one application. In the App personalized scenarios can be easily configured into the solution you have in mind: your smart home solution.

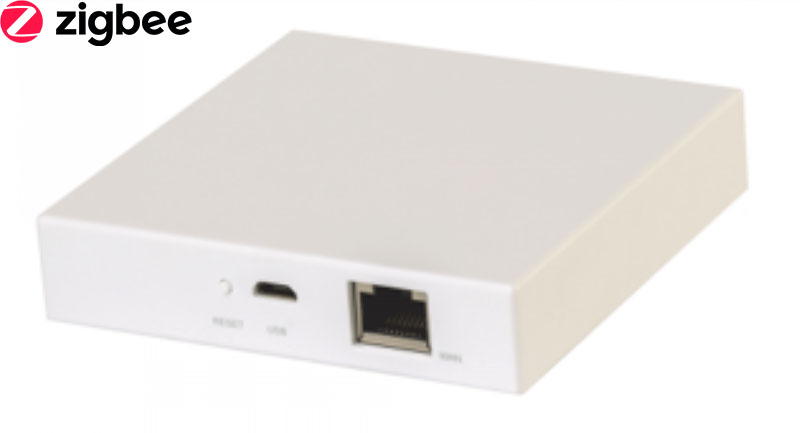

Central Unit
The central unit is the gateway for the Smart Home ZigBee products. It connects all products with ZigBee radio protocol to the Tuya smartphone App. The App enables to submit operating commands through the cloud to the gateway which in turn directs these commands to its network participants. In addition, the system allows for communication between its participants directly providing the possibility to create smart and complex scenarios for your home.
Features
Technical Data
- 5 V (1 A)
- ZigBee
- 2.4 GHz
- 150 m (open field)
- -10°C to +40°C
- RJ45
- 230 V AC, 5 V / 1 A DC
- ZigBee is a registered trademark of the ZigBee Alliance.

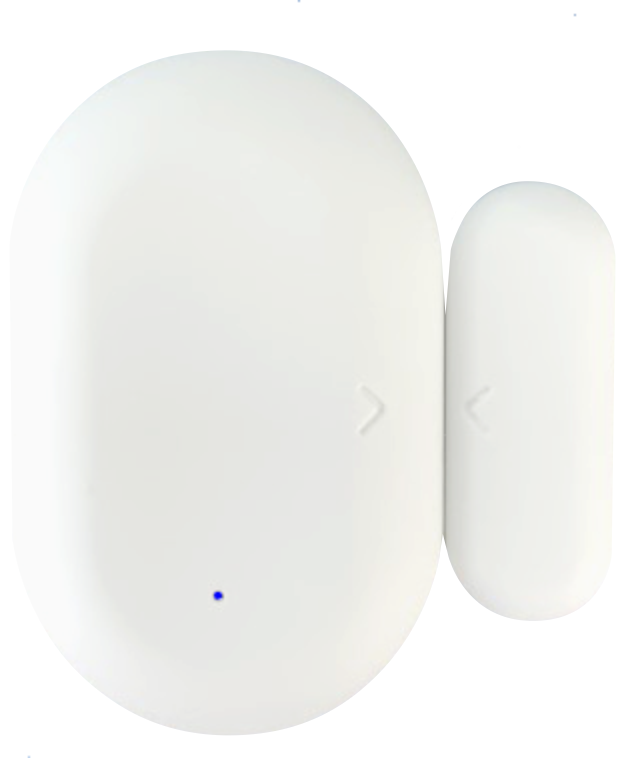

Window/door Sensor
The ZigBee® window/door sensor reliably detects an open window or door. Its function can be integrated in an energy saving scenario as well as in a home security function. Commands for temperature setpoint reduction or alarm triggering through push messaging and alarm siren initiating can be configured with the Tuya App. The Window/door Sensor can be easily addressed to the Central Units within minutes.
Features
Technical Data
- 1 x 3 V (CR2032 battery)
- 5 mA (average)
- ZigBee®
- 2.4 GHz
- 150 m (open field)
- 2.3 V to 3.3 V
- <3 µA
- -20°C to +60°C
- 0 – 95% (without condensation)
- ZigBee® is a registered trademark of the ZigBee® Alliance.

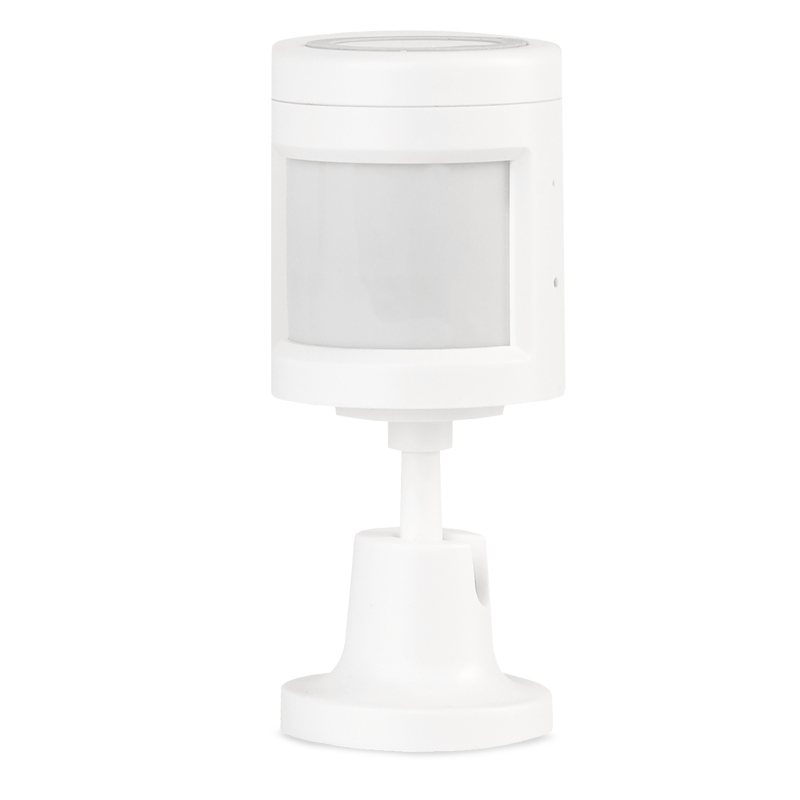

Motion Sensor
The ZigBee® Motion Sensor reliably detects any movement in the assigned space. Its function can be integrated in an energy saving scenario as well as in a home security function or other presence relation functions. Commands for comfort temperature settings or alarm triggering through push messaging and alarm siren initiating can be configured with the Tuya App. The Motion Sensor can be easily addressed to the Central Units within minutes.
Features
Technical Data
- 2.4 V to 3.3 V (CR2450 battery
- ZigBee®
- 2.4 GHz
- 150 m (open field)
- 5 mA (average)
- <20 µA
- 1 year (typical)
- -10°C to +45°C
- 0 – 95%
- ZigBee® is a registered trademark of the ZigBee® Alliance.

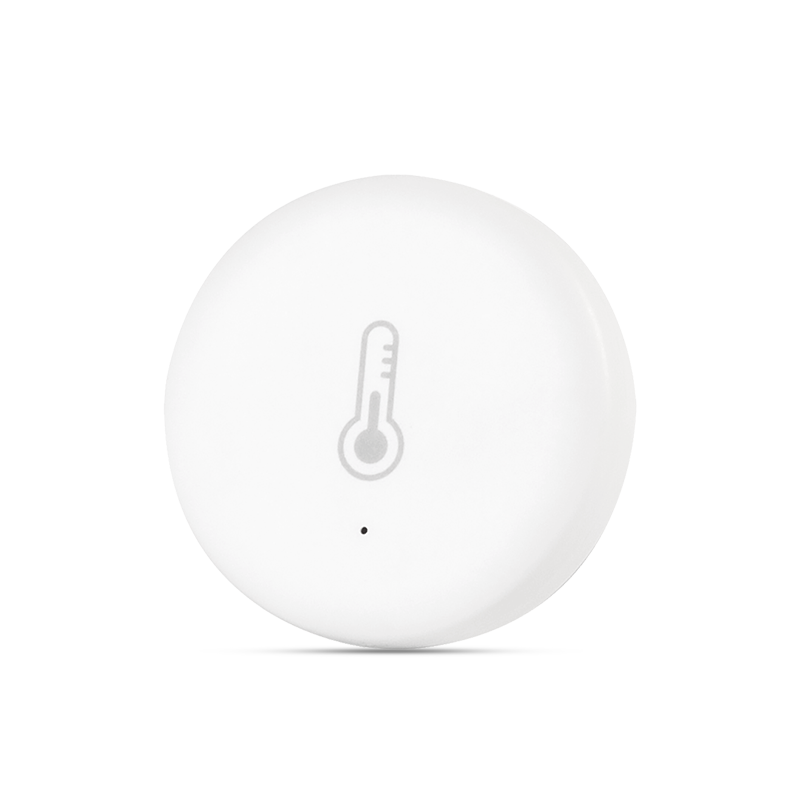

Temperature/humidity Sensor
The Temperature/humidity Sensor controls the temperature and humidity in the assigned space. The Central Units sends the information to the Smartphone App and trend data can be visualized. Limit values can be connected to actions such as switching on a dehumidifier at high humidity, closing curtains at high temperature and nobody being present at home, or any other smart idea increasing comfort or reducing energy consumption
Features
Technical Data
- 3 V (CR2032 battery)
- ZigBee®
- 2.4 GHz
- 150 m (open field)
- <3 µA
- 1 year (typical)
- -20°C to +60°C
- ZigBee® is a registered trademark of the ZigBee® Alliance.

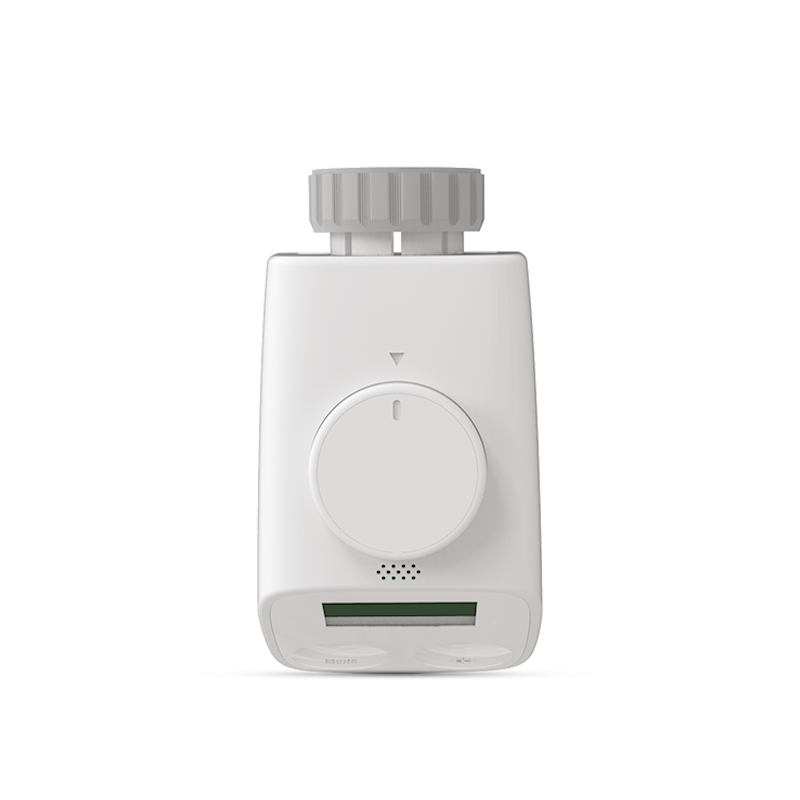

Radiator Thermostat
The Smart Home Radiator Thermostat controls the room temperature either through the configurable time program or manually. It can function stand-alone or can be integrated into the Smart Home App to be part of an individual smart home concept with remote control using the Tuya App. The time program can also be configured through the App. Up to 7 switching time per day are available to create an optimized indoor climate.
Features
Technical Data
- 2 x 1.5 V AA
- 5 mm
- > 65 N
- < 36 dB(A)
- 2 years (tyical)
- IP 20
- ZigBee®
- 2.4 GHz
- -10°C to +50°C
- ZigBee® is a registered trademark of the ZigBee® Alliance.

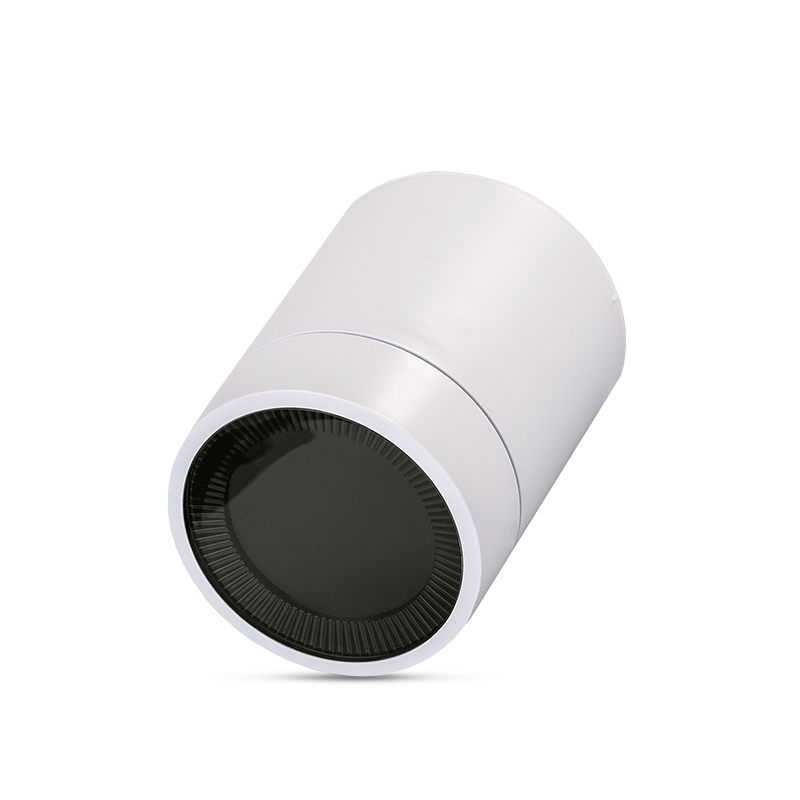

Premium Radiator Thermostat
The Smart Home Radiator Thermostat controls the room temperature either through the configurable time program or manually. It can function stand-alone or can be integrated into the Smart Home App to be part of an individual smart home concept with remote control using the Tuya App. The time program can also be configured through the App. Several switching times per day are available to create an optimized indoor climate.
Features
Technical Data
- 2 x 1.5 V AA
- 6 mm
- < 36 dB(A)
- 2 years (tyical)
- M30x1,5
- ZigBee®
- 2.4 GHz
- 30 m (indoor)
- 0 to 40 °C
- ZigBee® is a registered trademark of the ZigBee® Alliance.

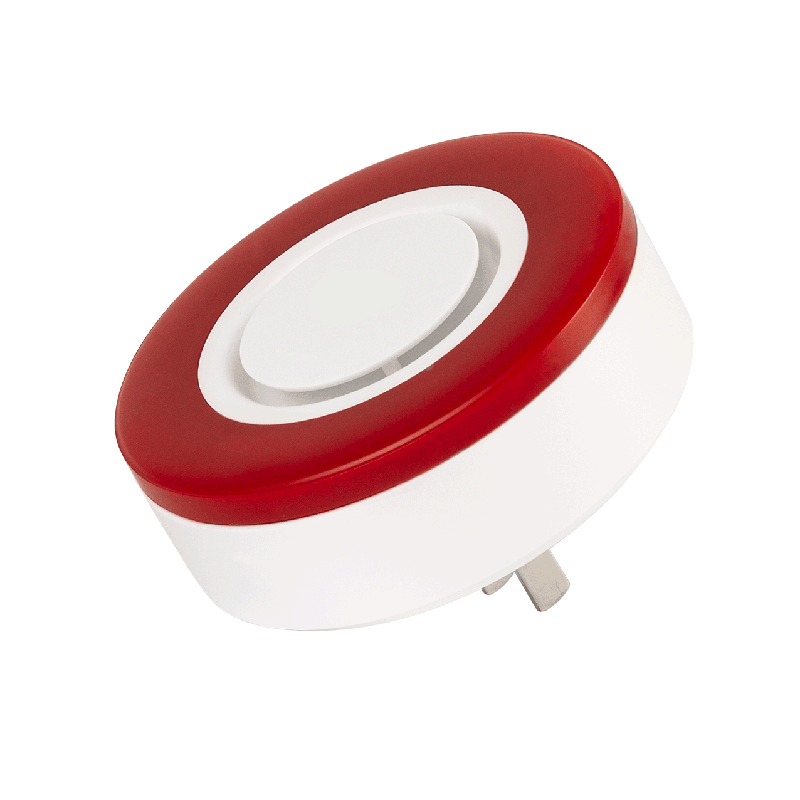

Alarm Siren
The Smart Home Alarm Siren is a smart alarm siren for indoor applications. It can be put into any 230 V socket and can be integrated into the Smart Home system with just a few clicks. In combination with other components such as the Window/door Sensor and the Motion Sensor it is possible to install a wireless security system fast and secure. The power reserve of 4 hours provides security also at power failure.
Features
Technical Data
- 230 V / 50 Hz
- 10 mA
- 3.7 V / 720 mAh
- ZigBee®
- 2.4 GHz
- 95 dB (at 1 meter distance)
- -10°C to +50°C
- 80 m (open field)
- ZigBee® is a registered trademark of the ZigBee® Alliance.
