Actuators for Underfloor Heating
Every year millions of Möhlenhoff thermal actuators are produced and sold world-wide to be used in underfloor heating.
Actuators for Underfloor Heating
Many homes with underfloor heating are equipped with Möhlenhoff thermal actuators. Designed to last for more than 10 years with the same performance as from day one, with their excellent quality our actuators modestly provide in silence optimized comfort control for our customers, day in and day out.
But also for project owners and installers our thermal actuators are an excellent choice. With their unique valve adapter system they fit on practically any valve or manifold, are easy to install and the first open function enables pipe flushing and building heat up without having to use any control device.

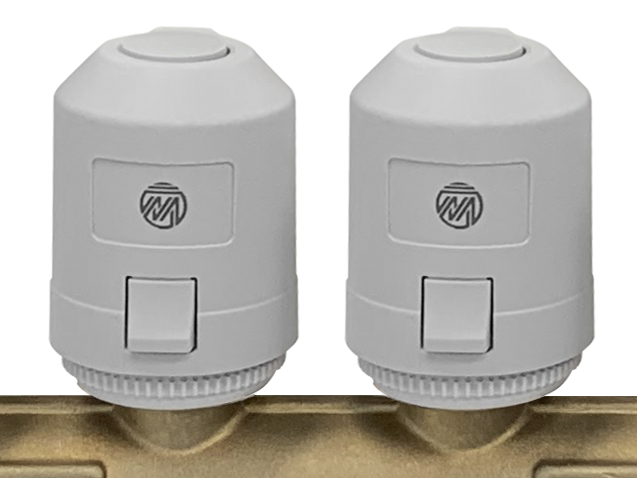

A5 – on/off with 4 or 5 mm stroke
The A5 with its modern design incorporates all technology advancements developed over the years and more: the 1-Watt Power Consumption Technology. The proof of our philosophy: future through ideas.
Features
- 1-Watt Technology
- Automatic First Open Function
- Valve Adapter System
Technical Data
- 230 V, 24 V AC/DC
- 4 or 5 mm
- NC or NO
- 1 W
- IP 54
- 1 m (fixed)

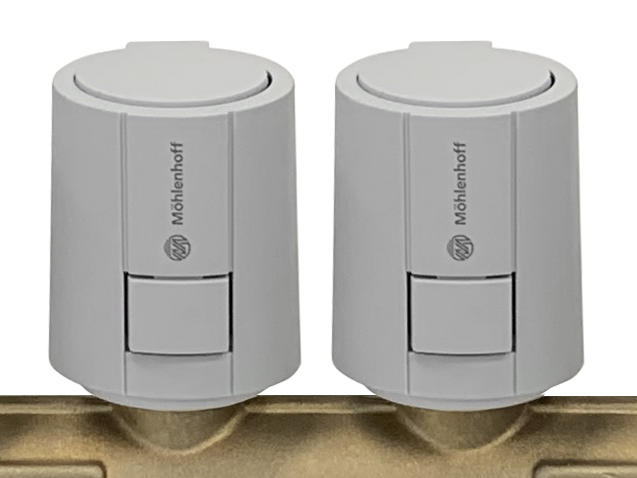

A4 – on/off with 4 mm stroke
With its characteristic design the A4 is already many years the face of Möhlenhoff thermal actuators and is the icon for quality made in Germany, of course only when bought from the original manufacturer.
Features
- Automatic First Open Function
- Valve Adapter System
Technical Data
- 230 V, 24 V AC
- 4 mm
- NC or NO
- 2 W
- IP 54
- 1 m (fixed)
A4 – on/off with 4 mm stroke
Based on the same technology and parts as the A4 made in Germany, this A4 is assembled by skillful hands in our factory in China in accordance with German quality standards and procedures. The best of two cultures.
Features
- Automatic First Open Function
- Valve Adapter System
Technical Data
- 230 V, 24 V AC/DC
- 4 mm
- NC or NO
- 2 W
- IP 54
- 1 m (fixed)

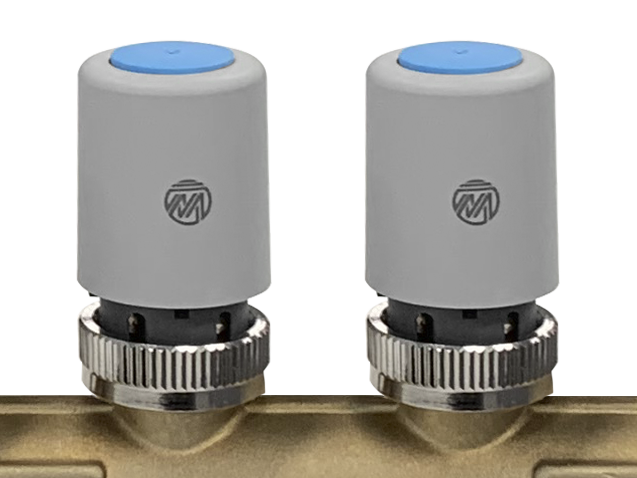

E3 – on/off with 5 mm stroke
The E3, without valve adapter system is a bit different from the rest, but for a good reason. In large projects the same manifolds are used and thus an adapter system is not necessary. A smart solution to reduce the overall project cost.
Features
- Manual First Open Function
- Union Nut M30x1.5 mm or M28x1.5 mm
Technical Data
- 230 V, 24 V AC/DC
- 5 mm
- NC
- 1.2 W
- IP 54
- 1 m (fixed)
