Actuators for Building Management Systems
Zone control for Building Management Systems requires accurate, reliable and low-noise actuators with a long lifetime expectation and equipped with many control options. Möhlenhoff´s thermal and motoric actuators fulfil these requirements to our customer´s satisfaction as they are exactly designed for this purpose.
Actuators for Building Management Systems
Automatic zero-point and valve stroke calibration provide an accurate true control signal even if not every valve stroke is identical due to its production tolerances. Noiseless thermal actuator technology with any control signal provides appropriate solutions with forces up to 125 N. For higher forces of up to 200 N the low-noise motoric actuators fulfil these requirements in a similar way. Whereas thermal actuators are intrinsically fail-safe, motoric actuators are also available in special fail-safe versions using a powerpack concept enabling the actuator to run to any preconfigured position when power is interrupted.
Our full range of zone control actuators are topped off with a Modbus interface enabling full integration into Building Management Systems.

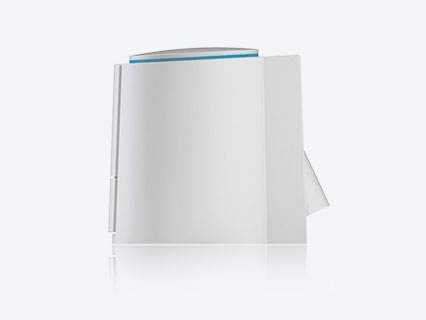

Type AST – on/off with plug-in cable
A5 type AST is designed with a plug-in cable that enables accurate project planning by selecting various cable lengths matching your requirements. Actuators are typically supplied without cable and cables chosen as accessories.
Features
- 1 Watt technology
- Plug-in cable
- Valve adapter system
Technical Data
- 230 V, 24 V AC/DC
- 4, 5 or 6.5 mm
- On/off
- NC or NO
- 1 W
- IP 54
- 1, 2, 3, 5, 10, 15 or 20 m

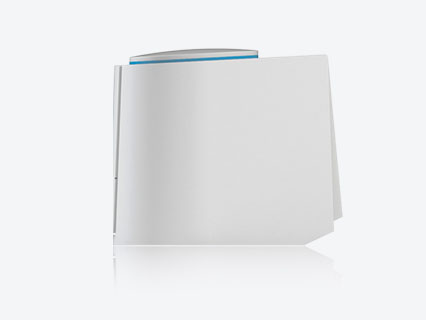

Types APR, APV and APO – proportional
A5 types APR, APV and APO are designed for proportional control with various options for the input voltage range. Versions with valves stroke recognition and feedback signal top off the range for any building management system control requirement in a precise way.
Features
- 1 Watt technology
- Proportional control
- Zero-point calibration
- Valve stroke recognition
- Feedback signal
- Plug-in cable
- Optional with 24 V DC
Technical Data
- 24 V AC, 24 V DC
- 4, 5 or 6.5 mm
- NC or NO
- 0 (2) – 10 V , 10 – 0 V
- 1 W
- IP 54
- 1, 2, 3, 5, 10 or 15 m
Types M3P, MPR, MPV and MPO
A5 motoric actuators are available with 2/3 point and proportional control and forces up to 200 N. Either with or without valve stroke recognition or feedback signal and an additional Modbus interface accessory for the integration into the Building Management System.
Features
- Low noise
- Forces: 100 to 200 N
- Speed 15 or 30 s/mm
- 2 or 3-point control
- Proportional control
- Zero-point calibration
- Valve stroke recognition
- Feedback signal
- Self-locking gear
- Plug-in cable
Technical Data
- 230 V, 24 V AC/DC
- 2 to 8.5 mm
- 0 (2) – 10 V, 10 – 0 V
- 1.4 W
- IP 54
- 1, 2, 3, 5, 10 or 15 m

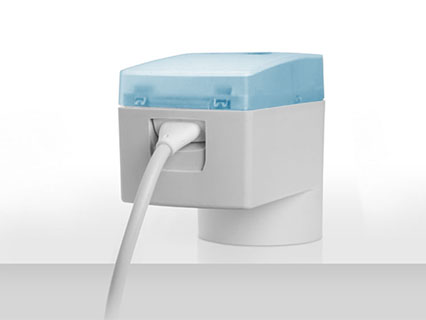

Types MPRF, MPVF and MPOF
A5 motoric actuators with fail-safe function are available with proportional control and forces up to 200 N. The fail-safe function can be set in the factory at any position. Zero- point calibration is standard, optionally with valve stroke recognition, feedback signal or Modbus interface.
Features
- Fail-safe operation
- Low noise
- Forces: 100 to 200 N
- Speed 15 or 30 s/mm
- Proportional control
- Zero-point calibration
- Valve stroke recognition
- Feedback signal
- Plug-in cable
Technical Data
- 24 V AC/DC
- 2 to 8.5 mm
- 0 (2) – 10 V, 10 – 0 V
- 1.4 W
- IP 42
- 1, 2, 3, 5, 10, 15 m
